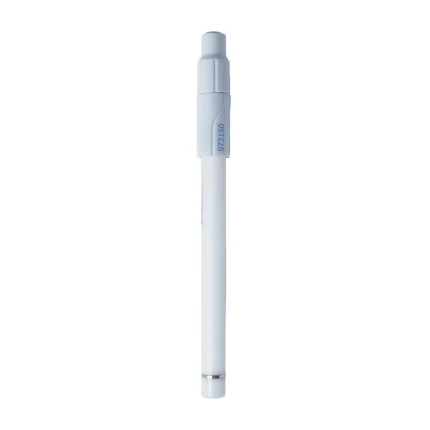

Residual Chlorine (Cl₂) Ion Selective Electrode 972150
R12,836.07 incl. VAT

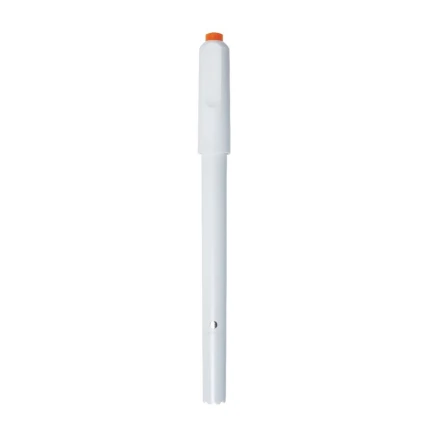

Polarographic Dissolved Oxygen Probe DO-957-Q – 0 – 20 mg/L, 4-pin
R4,722.71 incl. VAT
Conductivity Electrode DJS-1VTC – k = 1, 2 – 20 000 µS/cm, 5-pin
R2,300.81 incl. VAT

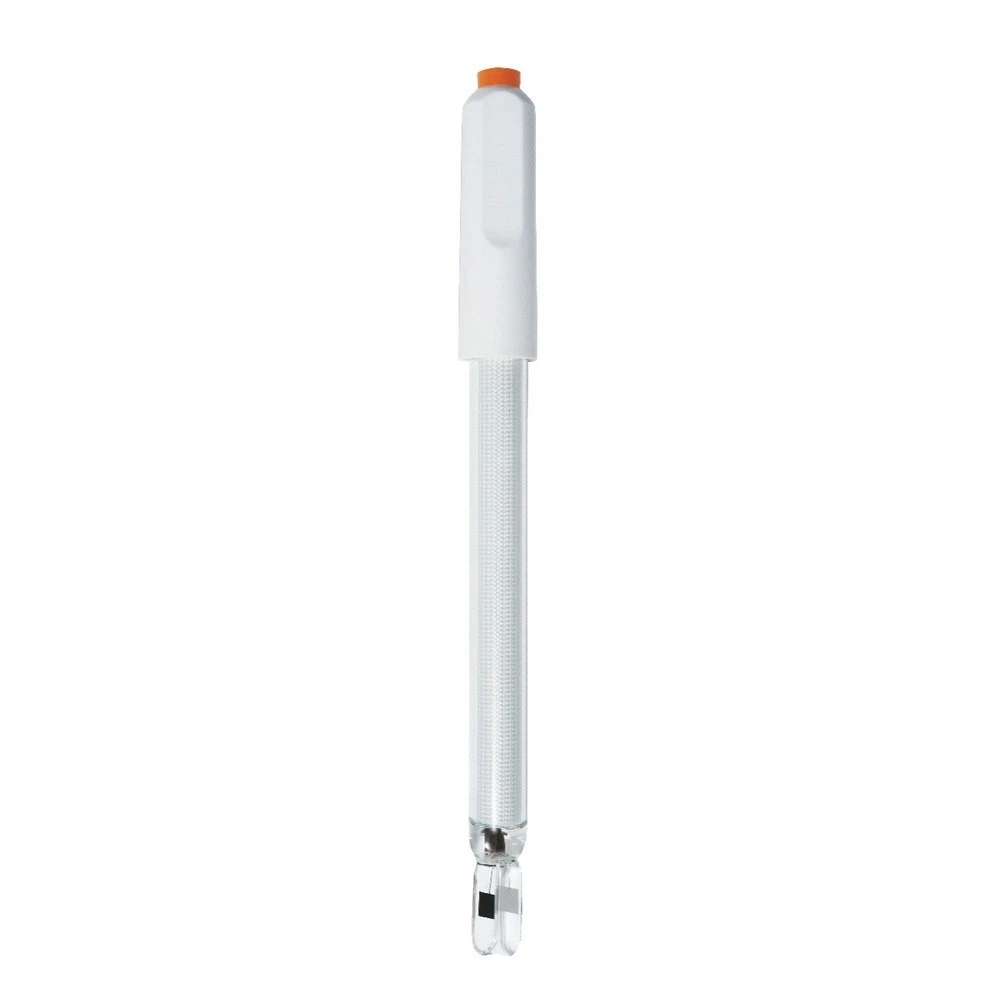

Glass conductivity cell DJS-1VTC with k = 1 and a built-in temperature sensor: 2 – 20 000 µS/cm, 0 – 80 °C, Φ12 × 120 mm, 5-pin aviation plug. Replacement cell for the EC210E conductivity meter.
Description
Overview
The conductivity electrode DJS-1VTC is a k = 1 glass conductivity cell with an integrated temperature sensor. It covers 2 – 20 000 µS/cm. In other words, it spans the working range for drinking water, surface water, boiler and cooling water and most process streams. Moreover, it measures from 0 – 80 °C.
It connects through a 5-pin aviation plug. It is the standard cell of the EC210E portable conductivity / TDS meter, and therefore also its replacement cell. For calibration, use the 1413 µS/cm and 12.85 mS/cm standards for most water work. For low-conductivity samples, however, use the 84 or 146.5 µS/cm standards.
Key features
- Cell constant k = 1 cm⁻¹ — 2 to 20 000 µS/cm
- Glass body, Φ12 × 120 mm
- Integrated temperature sensor, 0 – 80 °C
- 5-pin aviation connector — fits the EC210E portable conductivity / TDS meter
- Conductivity standards 84, 146.5 and 1413 µS/cm, 12.85 and 111.3 mS/cm available (250 ml)
Conductivity electrode DJS-1VTC — specifications
| Cell constant | k = 1 cm⁻¹ |
|---|---|
| Conductivity range | 2 – 20000 µS/cm |
| Measuring temperature | 0 – 80 °C |
| Body material | Glass |
| Working temperature | 0 – 80 °C |
| Dimensions | Φ12 × 120 mm |
| Connector | 5-pin aviation |
Specifically, the table lists the manufacturer’s ratings. Therefore, ask us if your application needs a value that is not shown.
Applications
The cell serves drinking-water and borehole surveys, boiler and cooling-water control, RO permeate and rinse-water checks, and general laboratory conductivity or TDS measurement. In addition, its temperature sensor gives automatic temperature compensation in the field.
Why buy the conductivity electrode DJS-1VTC from Hadron Group
Hadron Group runs its own water laboratory in Pretoria. In addition, we supply analytical instruments to municipal, mining, food and industrial laboratories across South Africa and the SADC region. We stock the electrodes we use ourselves. Moreover, calibration standards, filling solutions and replacement membranes are available for every model. Finally, we help you match the electrode to your meter before you order.
Frequently asked questions
How do I order the conductivity electrode DJS-1VTC? Quote the model number and your meter. In addition, tell us which standards and filling solutions you need, and we will quote the set.
Which meter does it fit? It fits the EC210E portable conductivity / TDS meter through its 5-pin aviation connector. However, check the connector on other meters before you order.
Is it temperature compensated? Yes. The cell carries a temperature sensor, so the meter compensates automatically.
Which standards do I need? The 1413 µS/cm and 12.85 mS/cm standards cover most water samples. For low-conductivity water, use 84 or 146.5 µS/cm instead.
Related: EC210E portable conductivity / TDS meter · all electrodes & probes.
