Name: Digital Heating Mantle with Magnetic Stirrer HMSC – 50 ml to 20 L
SKU: HMSC
Availability: InStock

Digital Heating Mantle with Magnetic Stirrer HMSC – 50 ml to 20 L

incl. VAT

Laboratory heating mantle with built-in magnetic stirrer, digital temperature control, room temperature to 300 °C, for round-bottom flasks from 50 ml to 20 L. Choose the flask capacity below. Each size has its own item code and price.

Capacity

50 ml

100 ml

250 ml

500 ml

1 L

2 L

3 L

5 L

10 L

20 L

Overview

The HMSC series is a digital heating mantle with stirrer for round-bottom flasks from 50 ml to 20 L. The flask sits in a hemispherical heating element. As a result, the whole vessel warms evenly and quickly. In other words, it is the standard way to reflux, distil and digest in a water or chemical laboratory.

A digital controller sets and displays the temperature, up to 300 °C. In addition, the built-in magnetic stirrer keeps the contents moving, so heat spreads and reactions run evenly. Finally, each flask size has its own mantle and item code, so you order exactly the capacity you need.

Key features

Intelligent temperature control
Heating evenly, heating up fast
Sized to the flask: one mantle per capacity from 50 ml to 20 L
Digital temperature setting and display, maximum 300 °C
Built-in magnetic stirrer for mixing while heating

Digital heating mantle with stirrer — specifications

Series

HMSC

Function

Heating and magnetic stirring

Temperature control

Digital temperature control with display

Maximum temperature

Room temperature to 300 °C

Capacities and heating power

Flask capacity	Heating power
50 ml	—
100 ml	100 W
250 ml	150 W
500 ml	250 W
1 L	350 W
2 L	450 W
3 L	600 W
5 L	800 W
10 L	1200 W
20 L	2400 W

Item codes

50 ml = 22600, 100 ml = 22601, 250 ml = 22602, 500 ml = 22603, 1 L = 22604, 2 L = 22605, 3 L = 22606, 5 L = 22607, 10 L = 22608, 20 L = 22609

Specifically, the table lists the manufacturer’s ratings. Therefore, ask us if your application needs a value that is not shown.

Applications

The digital heating mantle with stirrer serves reflux and distillation, COD and Kjeldahl digestion preparation, sample concentration and solvent recovery. In addition, it suits any bench procedure that heats a round-bottom flask — in water laboratories, QC labs and teaching laboratories.

Why buy the digital heating mantle with stirrer from Hadron Group

Hadron Group equips water-treatment, municipal and industrial laboratories across South Africa and the SADC region. In addition, we run our own laboratory in Pretoria for jar tests, disinfection-demand tests and chemical QC. Therefore we supply the bench equipment we use ourselves. Finally, commissioning advice, consumables and spares come from the same range.

Frequently asked questions

How do I order the digital heating mantle with stirrer? Quote the model and the Hadron item code. In addition, tell us which accessories you need, and we will quote the set.

Which digital heating mantle with stirrer capacity do I order? Match the mantle to the flask, because the hemispherical element fits one flask size. Then pick the flask volume from the list. Each option carries its own item code and price.

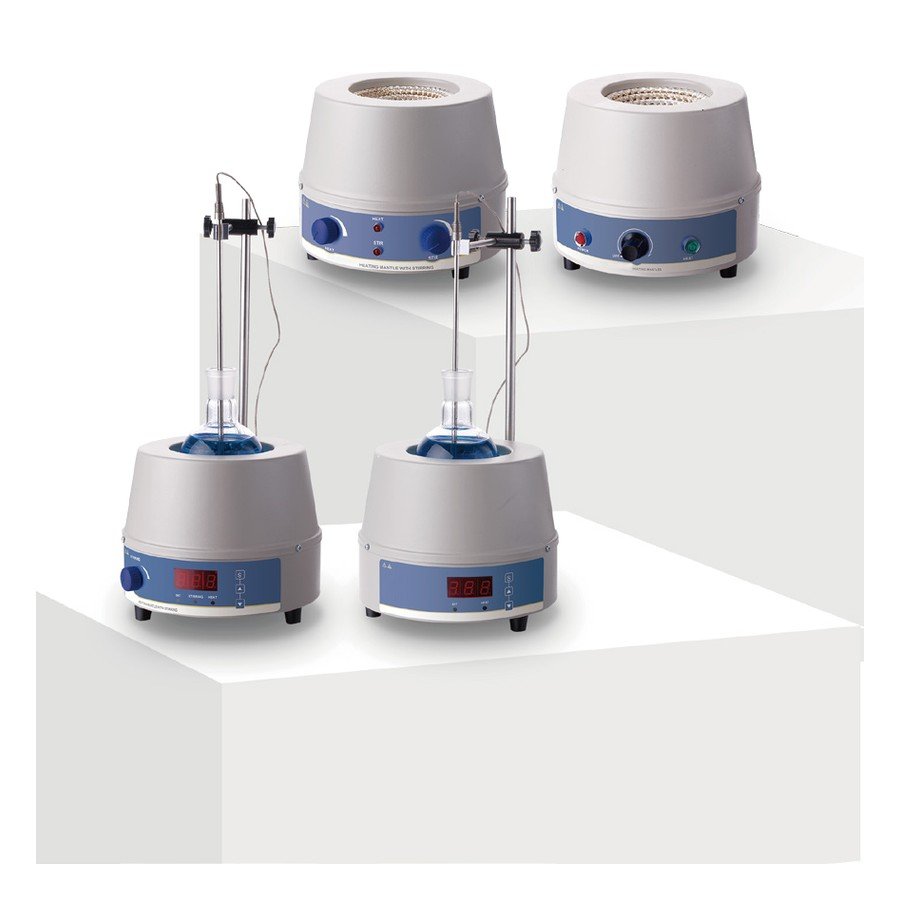

What is the difference between HM, HMC, HMS and HMSC? HM heats with analogue control to 380 °C. HMC adds digital temperature control (maximum 300 °C). HMS is the HM with a built-in magnetic stirrer. Finally, HMSC combines digital control and stirring.
