Name: Heating Mantle HM – 50 ml to 20 L, up to 380 °C
SKU: HM
Availability: InStock

Heating Mantle HM – 50 ml to 20 L, up to 380 °C

incl. VAT

Laboratory heating mantle, analogue control, room temperature to 380 °C, for round-bottom flasks from 50 ml to 20 L. Choose the flask capacity below. Each size has its own item code and price.

Capacity

50 ml

100 ml

250 ml

500 ml

1 L

2 L

3 L

5 L

10 L

20 L

Overview

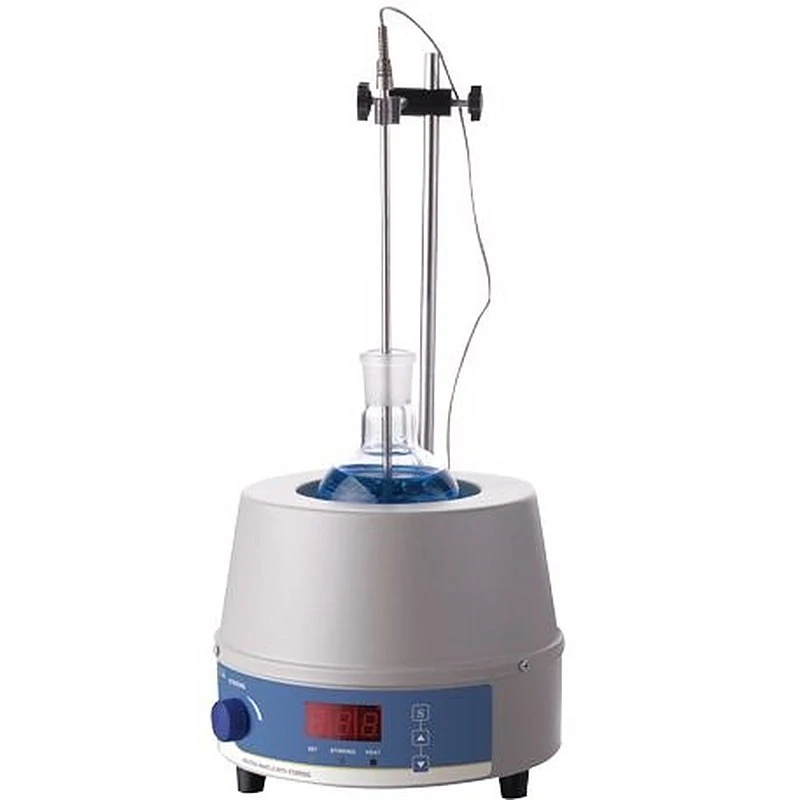

The HM series is a laboratory heating mantle HM for round-bottom flasks from 50 ml to 20 L. The flask sits in a hemispherical heating element. As a result, the whole vessel warms evenly and quickly. In other words, it is the standard way to reflux, distil and digest in a water or chemical laboratory.

A knob sets the heating power, and the mantle reaches 380 °C. Finally, each flask size has its own mantle and item code, so you order exactly the capacity you need.

Key features

Intelligent temperature control
Heating evenly, heating up fast
Sized to the flask: one mantle per capacity from 50 ml to 20 L
Analogue control, maximum 380 °C

Laboratory heating mantle HM — specifications

Series

Function

Heating

Temperature control

Analogue control (no digital temperature display)

Maximum temperature

Room temperature to 380 °C

Capacities and heating power

Flask capacity	Heating power
50 ml	—
100 ml	100 W
250 ml	150 W
500 ml	250 W
1 L	350 W
2 L	450 W
3 L	600 W
5 L	800 W
10 L	1200 W
20 L	2400 W

Item codes

50 ml = 22300, 100 ml = 22301, 250 ml = 22302, 500 ml = 22303, 1 L = 22304, 2 L = 22305, 3 L = 22306, 5 L = 22307, 10 L = 22308, 20 L = 22309

Specifically, the table lists the manufacturer’s ratings. Therefore, ask us if your application needs a value that is not shown.

Applications

The laboratory heating mantle HM serves reflux and distillation, COD and Kjeldahl digestion preparation, sample concentration and solvent recovery. In addition, it suits any bench procedure that heats a round-bottom flask — in water laboratories, QC labs and teaching laboratories.

Why buy the laboratory heating mantle HM from Hadron Group

Hadron Group equips water-treatment, municipal and industrial laboratories across South Africa and the SADC region. In addition, we run our own laboratory in Pretoria for jar tests, disinfection-demand tests and chemical QC. Therefore we supply the bench equipment we use ourselves. Finally, commissioning advice, consumables and spares come from the same range.

Frequently asked questions

How do I order the laboratory heating mantle HM? Quote the model and the Hadron item code. In addition, tell us which accessories you need, and we will quote the set.

Which laboratory heating mantle HM capacity do I order? Match the mantle to the flask, because the hemispherical element fits one flask size. Then pick the flask volume from the list. Each option carries its own item code and price.

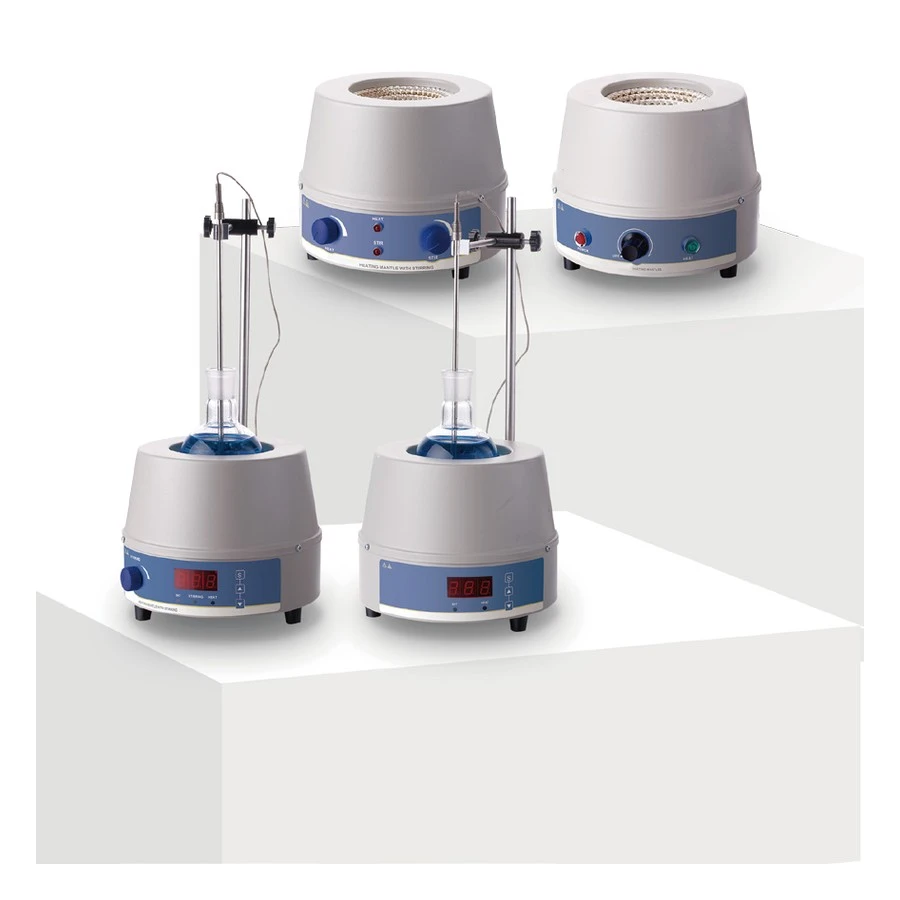

What is the difference between HM, HMC, HMS and HMSC? HM heats with analogue control to 380 °C. HMC adds digital temperature control (maximum 300 °C). HMS is the HM with a built-in magnetic stirrer. Finally, HMSC combines digital control and stirring.
